Middle Arm Road Street Lighting
Client
Goulburn Mulwaree Council
Lighting Compliance
ASNZ:1158.3.1 category V5
Project Overview
The Goulburn Mulwaree Council identified that one of their popular roadways was inadequately lit and was in need of a reliable lighting solution. However, after looking into a grid-powered solution they realised the cost to trench and cable would go over budget so they needed a more affordable solution.
Having working together previously on a shared pathway lighting project, council approached Leadsun who were able to provide an affordable and compliant solution that could be self-funded under the Council’s Safe Road Program. The lighting would also complement another solar lighting system council installed back in 2013 which saw 50 solar lights installed along the connecting Marys Mount Road.
Leadsun Solution
- 8 x AE6130
- 8 x Sylvania Street Leds
- LED output = 14w
- Lithium-ion batteries 768wh
- Category Lighting Compliance = V5
Lithium-ion batteries provides 10+ years maintenance-free life span
Before installing solar engines and LED fixtures, consideration needed to be given to the existing underground power and communication infrastructure installed throughout the area, which posed a significant risk of being damaged with traditional excavation equipment.

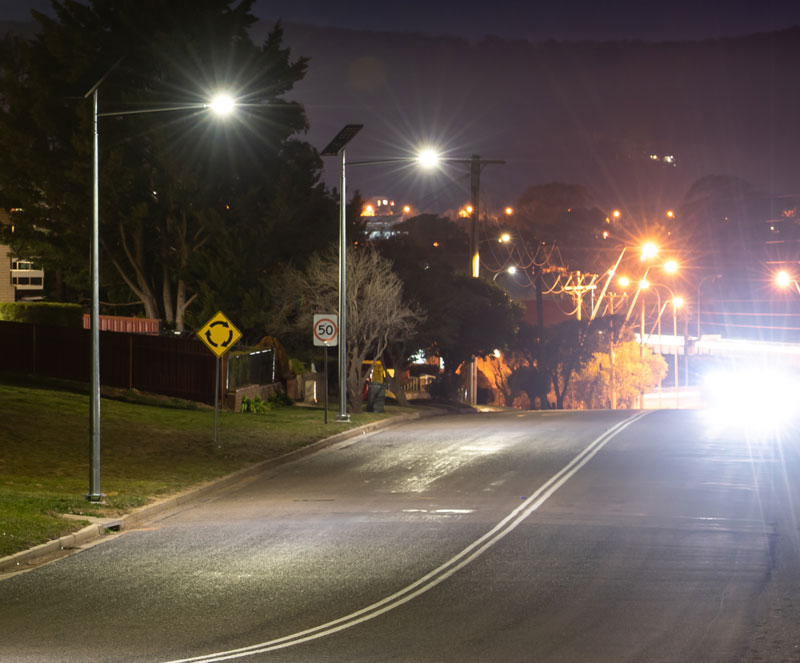

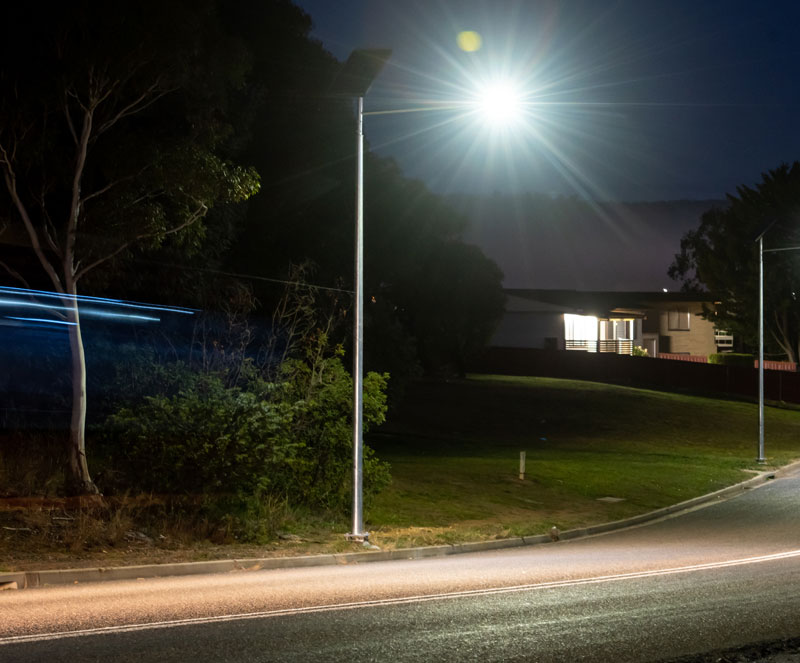

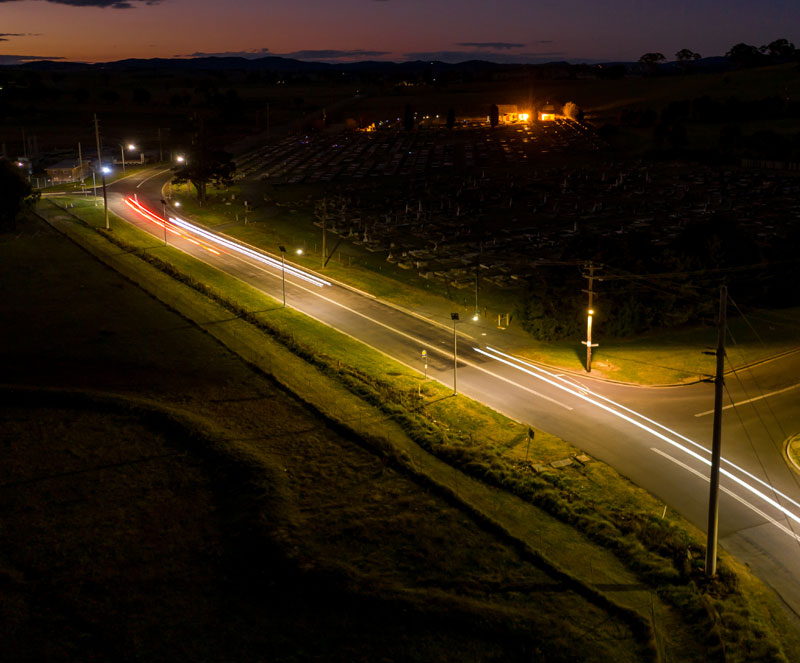

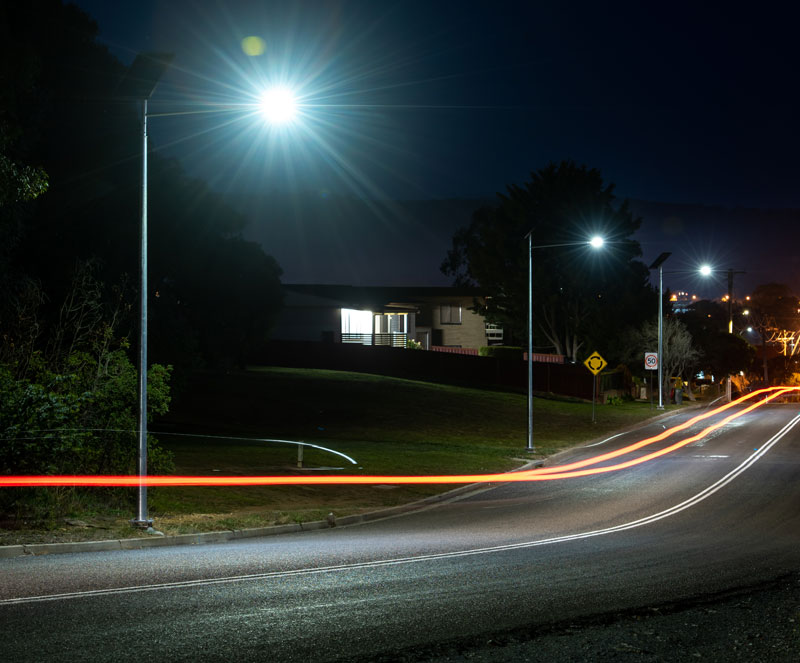

This project also included the provision for eight solar led street lights on 8.0M Frangibles Poles with 2.0m outreaches. The lights will operate from dusk-dawn.
The result is an appropriately lit road that complies to the standard, which is grid- free, providing the council with a long lasting, reliable and sustainable solution for many years to come.
