AE3 Urban Lighting System

AE3 Series

SMART solar powered urban lighting for medium-sized public areas

The AE3 system is perfect for lighting medium to large sized public areas. Based on the AE2 – the world’s first all-in-one solar street light – the AE3 is a versatile commercial solar light designed for recreational areas and park lighting, car park lightingthoroughfares and pathway lighting.

Advanced
Technology

Combining the benefits of solar photovoltaic (PV), LED light, dual lithium batteries and adaptive lighting controls with optional wireless control and monitoring.

Cost-effective public lighting

Quick installation, minimal maintenance and no electricity bills makes the AE3 a cost-effective and convenient lighting solution.

Zero emissions,
zero electricity bills

Powered by the sun with zero CO2 emissions and zero electricity costs all day, every day.

Contemporary
Design

Beautiful, sleek, contemporary design that looks great, day or night. An ideal complement to great architecture and landscape design.

Find out if the AE3 is the right urban lighting solution for your street, car park, path, park, public event or work site.

Find out if the AE3 is right for your street, car park, path, park, public event or work site.

AE3 Models

AE3 industrial outdoor solar lights are available in either a sleek all-in-one model, or a split system with separate power plant.

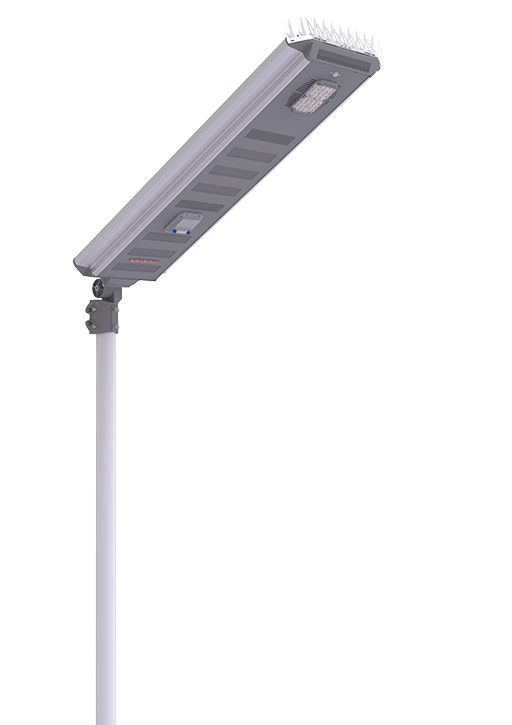

All-in-One Urban Lighting

AE3 Split System

The original compact commercial solar light for medium-sized areas

Solar Panel

60 watt mono-crystalline solar module

Battery

2 x 154Wh (308Wh) Lithium batteries

Light

10 watt LED luminaire

Compact but powerful for larger urban lighting applications

Solar Panel

90 watt mono-crystalline solar module

Battery

2 x 308Wh (616Wh) Lithium batteries

Light

30 watt LED luminaire

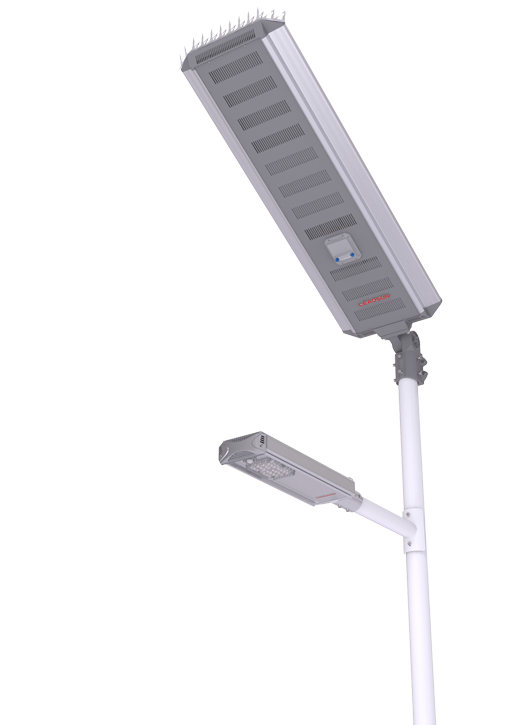

AE3 split system commercial solar light

Split system designed for greater lighting control in medium-sized areas

Solar Panel

60 watt mono-crystalline solar module

Battery

2 x 154Wh (308Wh) Lithium batteries

Light

10 watt LED luminaire

AE3 split system commercial solar light

Split system for larger urban lighting applications needing more power

Solar Panel

90 watt mono-crystalline solar module

Battery

2 x 308Wh (616Wh) Lithium batteries

Light

30 watt LED luminaire

Projects

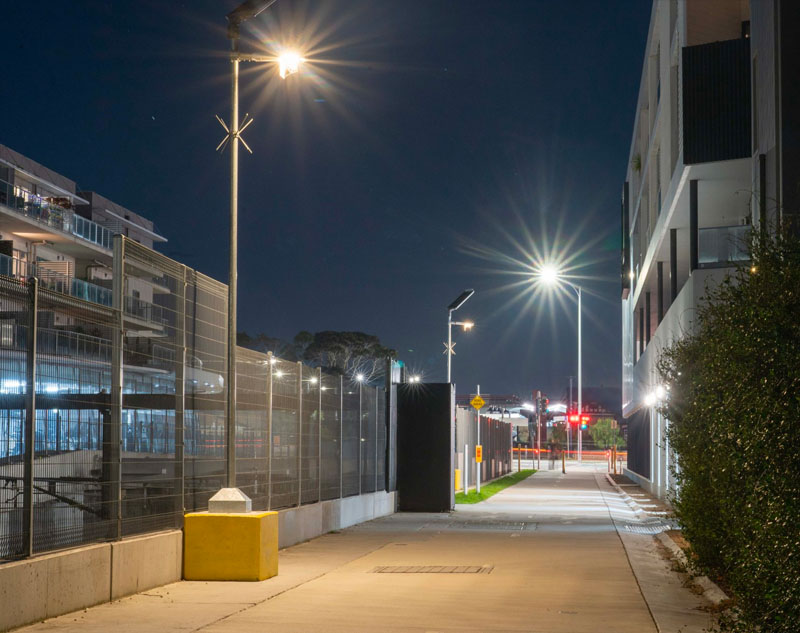

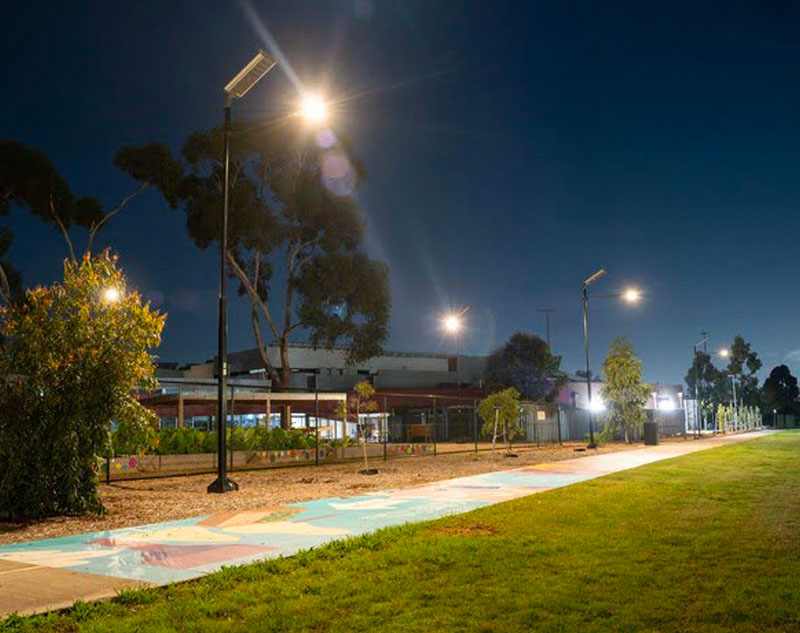

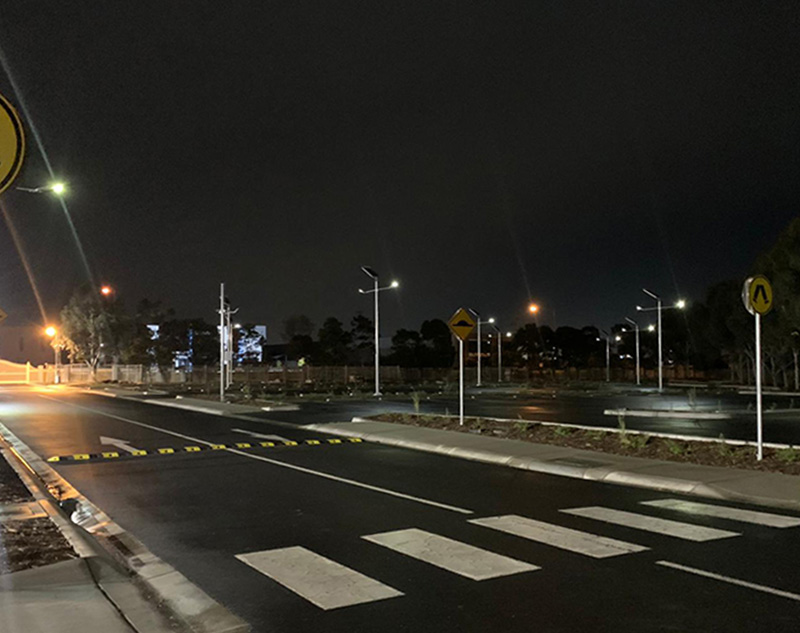

Urban lighting projects using our AE3 industrial outdoor solar lights

“I found Leadsun trustworthy and thorough and the end result was everything we hoped for and some. The whole community are loving the lights along the trail, it’s so great, it truly is!”

The Bass Coast Council

Rail Trail Illumination Project

“This cost effective lighting solution has not only eased the traffic congestion for the community but it is a sustainable win for all.”

Penrith City Council

North Street car park

“I found Leadsun trustworthy and thorough and the end result was everything we hoped for and some. The whole community are loving the lights along the trail, it’s so great, it truly is!”

The Bass Coast Council

Rail Trail Illumination Project

“The quality of this product is excellent, and the pricing is highly competitive.



I highly recommend it!”

Campbelltown City Council

Blinman Oval Solar Path Lights

“This cost effective lighting solution has not only eased the traffic congestion for the community but it is a sustainable win for all.”

Penrith City Council

North Street car park

Contact Sales

Call our urban lighting specialists on 1300 532 378 or email sale@caymandelights.com to find out more. You can also use the form below to tell us about your lighting project and one of our lighting specialists will call or email you back.

Frequently Asked Questions (FAQ)

The AE3 is ideal for medium-sized areas like paths, parks and car parks. The AE6 provides more power to light up larger areas like streets and roads as well as paths and car parks where more light is needed. The Freedom has been purpose-designed especially for residential streets.

As a general guide, we can fully supply and install 3 engineered and compliant AE3 systems for about $12,500. Costs will vary however depending on application, installation size, access and design.

Powered by the sun, AE3 commercial solar lights are more affordable than conventional electricity grid-connected lighting with lower upfront & life-cycle costs.

Installation costs vary depending on application, installation size, access and design. As a general rule though, installation costs are around a quarter of that for a similar grid-powered lighting system.

No electrical connections or underground cabling is required for Leadsun commercial solar lights. This means they can be fully installed in about 20% of the usual time required for a conventional grid-powered system. This means less cost to you and reduced disruption.

Solar, LED and LiFePO4 battery technology have come a long way in recent years. The AE3 uses mature, proven technology that will match or outperform any other lighting solution on the market.

In Australia and New Zealand, all outdoor public lighting including commercial solar lights must comply with Australian and New Zealand Lighting Standards. We provide a complete, fully engineered solution for you, ensuring compliance with AS/NZS 1158.3.1:2020. All of our urban lighting systems are designed to ensure at least 3 nights of continual lighting, even on cloudy days without needing any power from the electricity grid.

SMART solar LED street lights are robust, reliable mature technology, tried, tested on many thousands of installations over 15 plus years. They are economical when compared with grid-connect streetlights, easier to install, sustainable with zero emissions from their operation, have no energy costs, are maintenance-free, Dark-sky compliant, and have optional wireless monitoring and control.

Our SMART solar LED street lights require minimal maintenance. The photovoltaic solar panels do not require washing or dusting and our systems can be monitored remotely with wireless SMART technology.

If servicing is required, our optional lowerable pole technology makes access easy with no cranes or special equipment needed.

Normally, a lithium-ion battery will last between five to eight years. However, with Leadsun’s patented, advanced technology we guarantee batteries will have at least 80% of their rated capacity after 10 years. In practice, actual battery life can extend well beyond this with typical battery life being around 15 years.
